Compact Station NDV400 / NDV401

smallest dimensions up to 800 kVA , SF6-Ring-Main-Unit

  • MV1 = RMU 12/24kV(C,C,T or C,C,C,T or C,C,CB)
  • MV2 = MV-Measurement 12/24kV (3x U/ 3x I - converter)
  • LV: LV-fuse switch-disconnector 1600A as main switch
  • Up to 13 LV-fuse-switch-outgoings 400/630A as backup bar
  • also customer design possible with meter box size 3

Type Tests

Electromagnetic compatibility (emc) < 100 µTesla

Electromagnetic compatibility (emc) < 100 µTesla

Dielectric Consistency

Dielectric Consistency

Checks for proof of dielectric consistency in the connections between the high voltage switchgear and the transformer (Type testing in accordance with IEC EN DIN 62271-202).

mechanical stress

mechanical stress

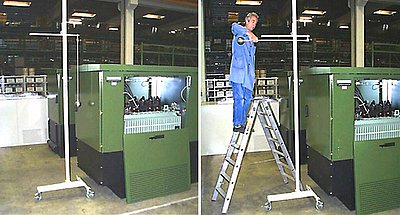

Tests to prove the resistance of the housing against mechanical stress (Type testing in accordance with IEC EN DIN 62271-202).

Definition of the housing temperature rate

Definition of the housing temperature rate

Tests in accordance with IEC EN VDE 62271-202 confirms that warming up of the transformer inside the housing does not exceed the values for the same transformer, measured outside the housing, by more than 15K.

Arcing fault tests

Arcing fault tests

The protection of persons against arcing faults has our utmost attention. We thereby comply with the new IEC EN VDE 62271-202 regulation.
